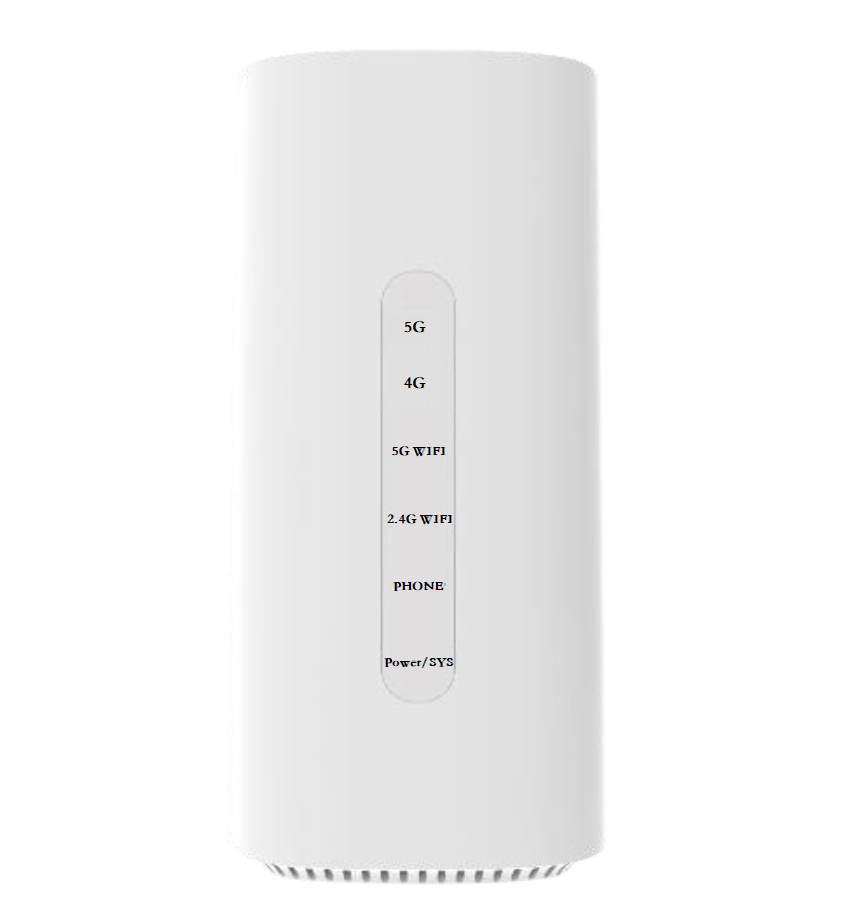

YM-CPE-5GE1
1. 4-core CPU and A53 2.2Ghz,
2. Worldwide 5G and LTE-A coverage
3. 5G NSA&SA , VoLTE/VoNR
4. WIFI6 AX3600, 4x4 MIMO
5. 2.5G LAN/WAN ports
Main features
Hardware Features
Software features (can be customized)
CPU
4 Core A53, 2.2GHz
Security
Built-in firewall, Defense of DoS, ARP, attacks/Port scan, MAC/Port filtering, 802.1x
interface
1*2.5G WAN/LAN
+4GE+1Phone+1USB3.0+1Power+1SIM Slot
5GNR/LTE Antennas
Internal 4*45Gantennas, Internal 4*4 LTE antennas, LB: 2dBi，MHB: 4dBi
Wireless Module
Auto/manually network search, Dual Link backup, Traffic statistics, SMS, VoLTE/VoNR*
Wi-F I Antennas
Internal 4*4 2.4GHz antennas , Internal 4*4 5GHz antennas, Gain: 3dBi
QOS
802.11e, Classification of service flow, Port/VLAN/ IP rate limitation
WIFI 6
Support 802.11 a/b/g/n/ac/ax standards
20/40/80/160MHz bandwidth, Channel adaption, MSSID +Guest network, WPS: PBC/PIN modes, WPA/WPA2/WPA3 security, Beamforming,DL/UL MU-MIMO, OFDMA, MESH, AX3600 up to 3600Mbps
5G&4G TE Frequency Band
5G NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41
/n77/n78/n79
LTE-FDD: B1/3/5/7/8/18/19/20/26/28/32
LTE-TDD: B34/38/39/40/41/42/43
WCDMA: B1/3/5/6/8/19
NSA: 2.5Gbps (DL)/650Mbps (UL)
SA: 2.1Gbps (DL)/900Mbps (UL)
Button
WPS/MESH + Reset +Power
Network Protocols and Features
Operation modes: Bridge or Routed
Connection modes: PPPoE/DHCP/Static IPv4, IPv6, IPv4/IPv6, DHCP v4/v6 server, Static (v4/v6) routing
NAT/ALG/DMZ/virtual server, ARP/ICMP/DNS proxy
NTP, VLAN, VPN: PPTP/L2TP/IPSec
LED
5G, 4G, 5G WIFI,2.4G WIFI,LAN port, Phone, Power
Operating Temp
-10℃~45 ℃
Storage Temp
-40℃~70 ℃
Humidity
5% –95% (non-condensing)
Dimension
124.2*104.2*213.7mm
