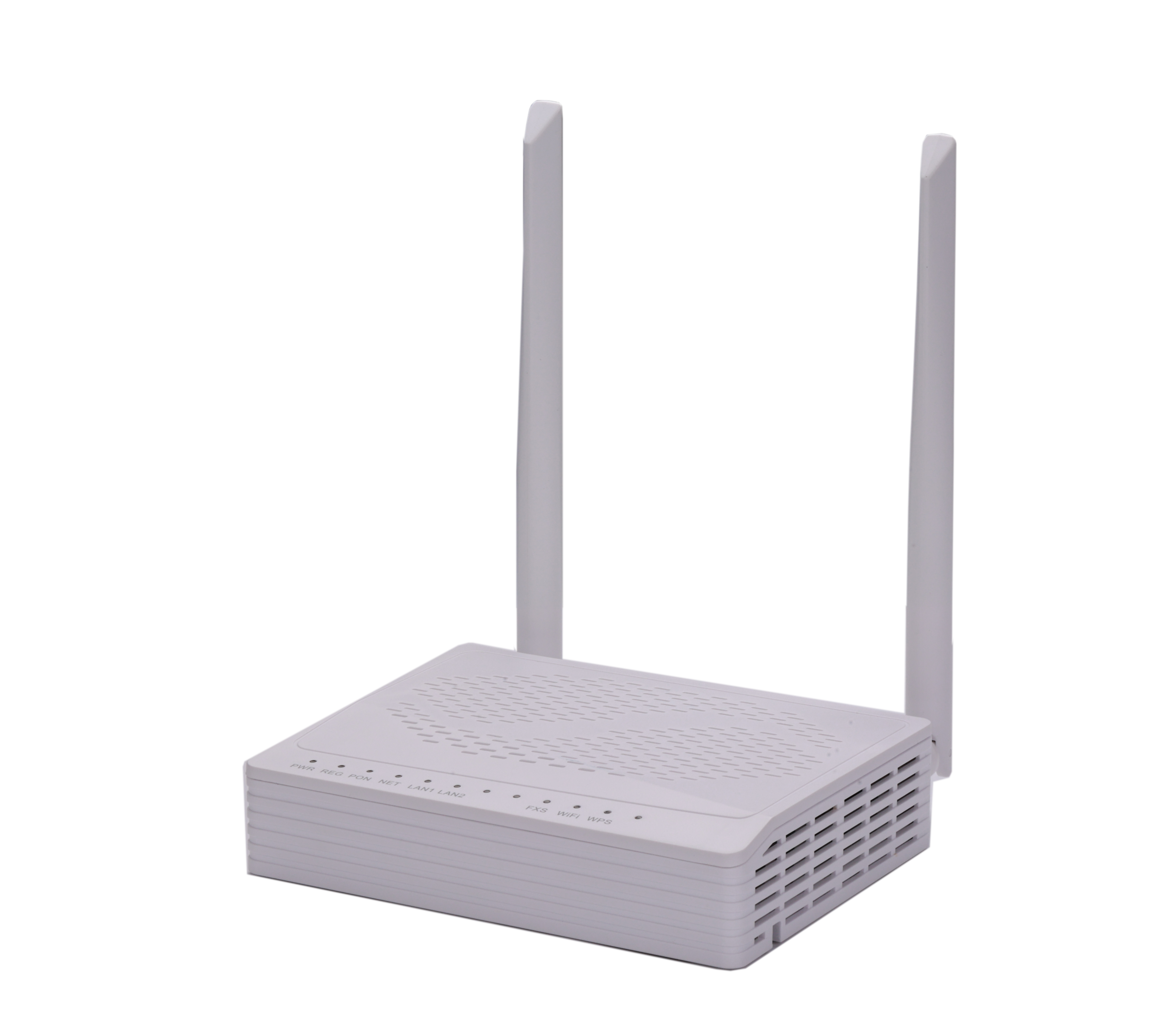

GPWL-7526FT-13 (1XPON+1GE+1FE+1Pots +WIFI 4 ONU)
1. Easy to Install, Stand or wall mounting
2. WIFI 4, external 2×5dBi Antenna, WideCoverage
3. Carrier-levelreliability in hardware/software
Main Features
Hardware Features | Software Features (can be customized) |
PON standard and distance | ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4, MAX distance 20KM | O&M | WEB/TELNET/ OAM/OMCI/TR069 |
Internet | Bridging and Routing Mode |
Multicast | IGMP v1/v2/v3 , IGMP snooping |
GPON Rate | Upstream:1.25Gbps, Downstream:2.5Gbps | Firewall | Anti-DDOS, Filter By ACL/MAC/URL /URL/IP/Port |
WIFI 4 | IEEE 802.11b/g/n Wi-Fi@2.4GHz(2x2) Up to 300Mbps 2x5dBi external antenna | WIFI 4 | WIFI Encryption:WEP-64/WEP-128/WPA/WPA2 /WPA3, WPS Dynamic QoS, Multi SSID for 2.4GHz |
Power | adapter DC 12V, 1A, <=7W | L2 | 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN, |
Dimension Weight | 150x115x36mm, 0.22Kg |

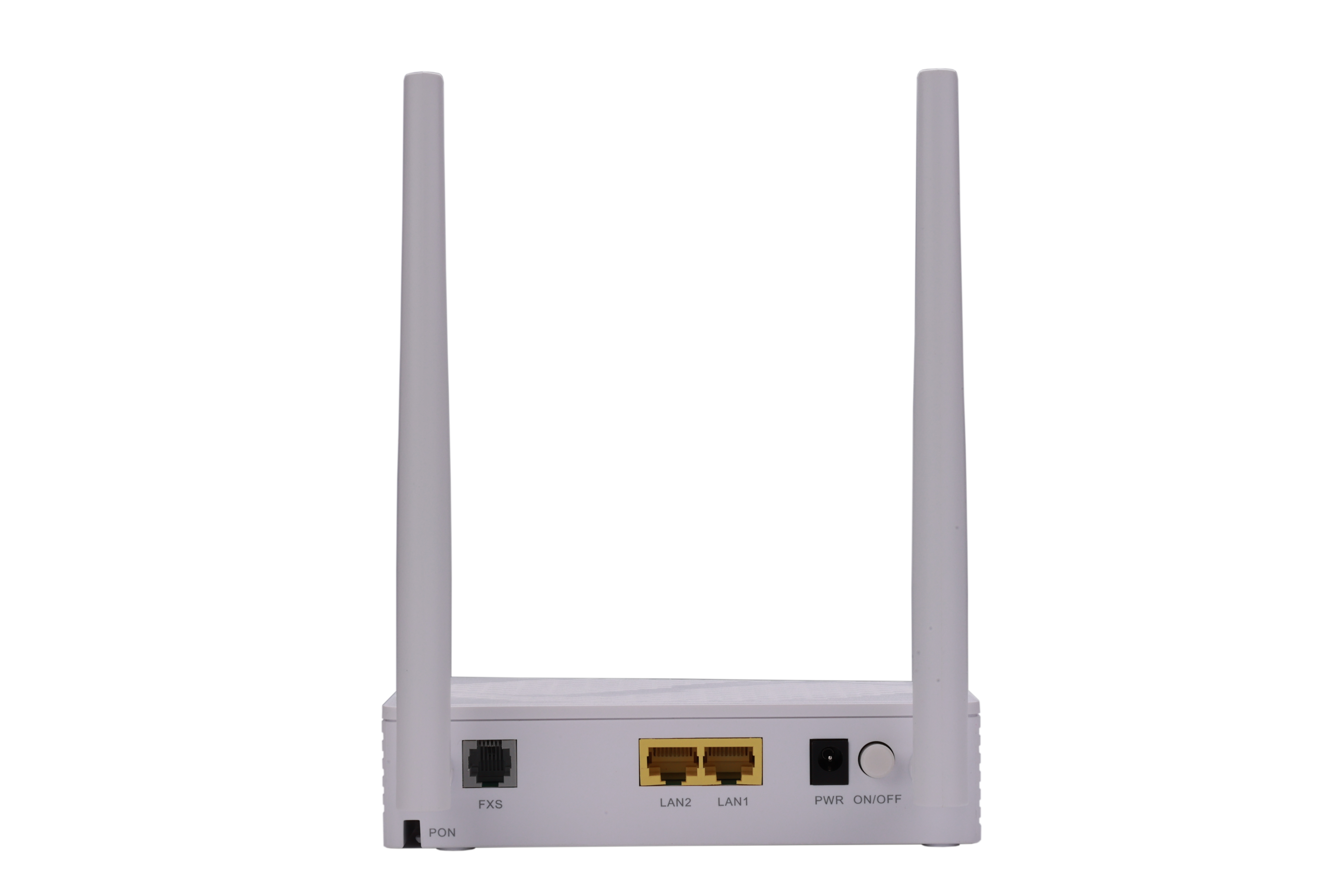

Interface | 1XPON (SC/APC)+1GE+1FE+1Pots | L3 | IPv4/IPv6, DHCP Client/Server, PPPoE, NAT,DMZ, DDNS, port mapping, ALG |
Operating condition | •Operating temp: 0 ~+50°C • humidity: 10 ~ 90% (on-condensed) | VOIP | SIP and IMS SIP, G.711a/G.711u/G.722/G.729 Codec, Echo cancellation, VAD/CNG, DTMF Relay, T.30/T.38 FAX, Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference, Line testing according to GR-909 |
Storing condition | •Storing temp: -30 ~ +70°C • humidity: 5 ~ 95% (on-condensed) |
