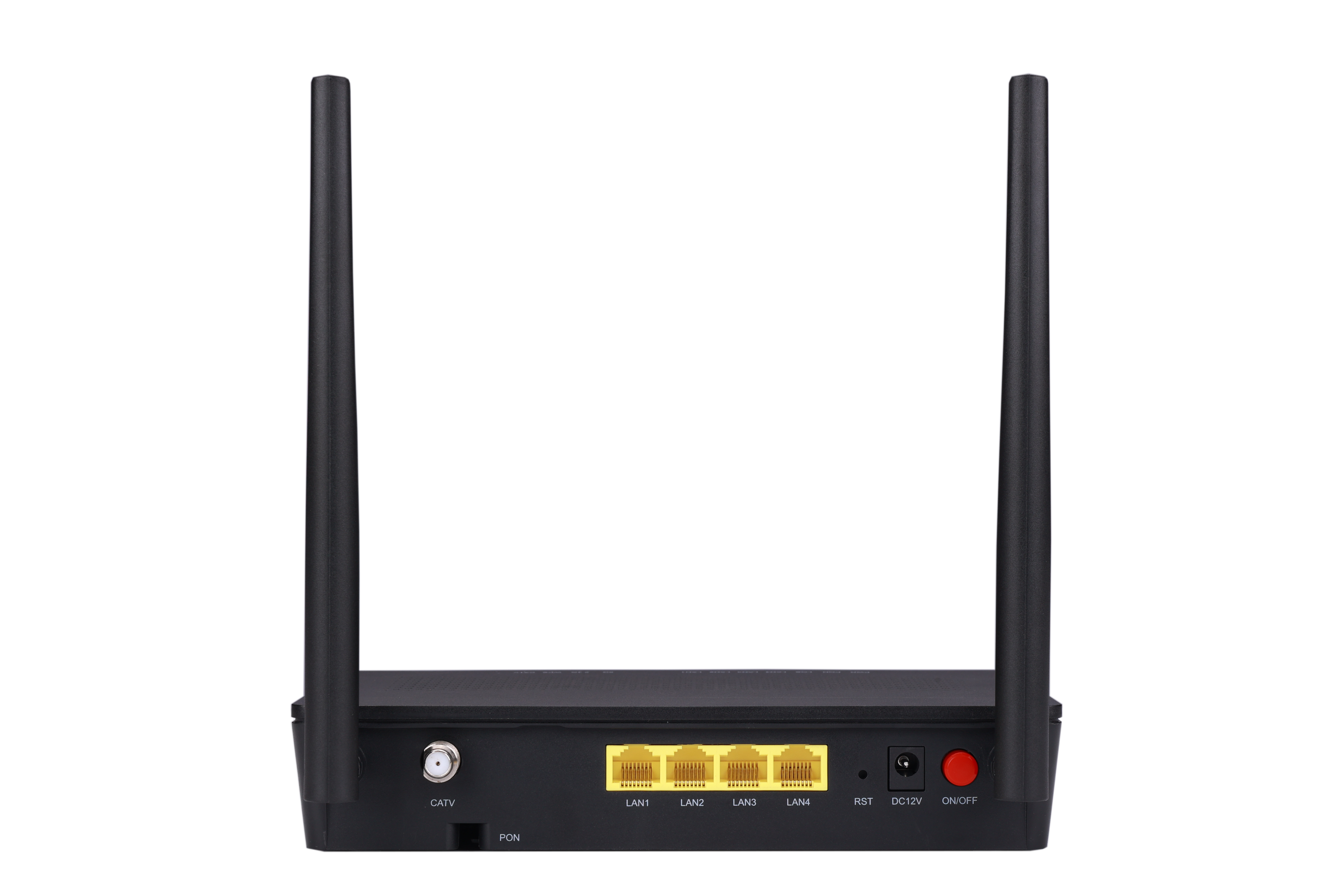

GPWL-7528HU-10
(1XPON+4GE+1Pots (Optional) +1USB2.0 (optional) +CATV +WIFI5ONU)
1. Easy to Install, Stand or wall mounting
2. WIFI 5, external 2×5dBi Antenna, WideCoverage
3. Support CATV ,Optional for Voice and USB port
4. Carrier-levelreliability in hardware/software
Main Features
Hardware Features
Software Features (can be customized)
PON standard and distance
ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4, MAX distance 20KM
O&M
WEB/TELNET/ OAM/OMCI/TR069
Internet
Bridging and Routing Mode
Multicast
IGMP v1/v2/v3 , IGMP snooping
GPON Rate
Upstream:1.25Gbps, Downstream:2.5Gbps
Firewall
Anti-DDOS, Filter By ACL/MAC/URL /URL/IP/Port
WIFI 5
IEEE 802.11a/n/ac Wi-Fi@ 5GHz(2x2)
IEEE 802.11b/g/n Wi-Fi@2.4GHz(2x2)
Up to 1200Mbps (2.4G 300Mbps, 5G 866Mbps), 2x5dBi external antenna
WIFI Encryption:WEP-64/WEP-128/WPA/WPA2
/WPA3, WPS/MESH（optional）,
Dynamic QoS,
Multi SSID for 2.4GHz and 5GHz dual band
Power
adapter DC 12V, 1.5A, <=10W
L2
802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN,
Dimension Weight
195x135x37mm, 0.329Kg
Interface
1XPON (SC/APC)+1USB2.0(optional)
+1Pots(optional)+4GE+CATV
L3
IPv4/IPv6, DHCP Client/Server, PPPoE, NAT,DMZ, DDNS, port mapping, ALG
Operating condition
•Operating temp: 0 ~+50°C
• humidity: 10 ~ 90% (on-condensed)
VOIP
SIP and IMS SIP, G.711a/G.711u/G.722/G.729 Codec, Echo cancellation, VAD/CNG, DTMF Relay, T.30/T.38 FAX, Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference, Line testing according to GR-909
Storing condition
•Storing temp: -30 ~ +70°C
• humidity: 5 ~ 95% (on-condensed)
